Multiline Lubrication System

Multiline Lubrication System
Multiline Lubrication System
Product Code : CST-14
Brand Name : CENLUB SYSTEMS
Product Description

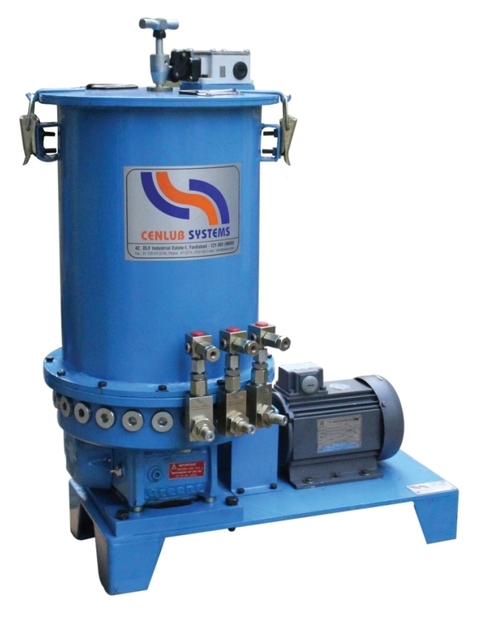

Multiline Lubrication System

With our technologically advanced manufacturing facility, we manufacture, export and supply a premium quality range of Multiline Lubrication System. The offered system is manufactured under the supervision of our skilled professionals by utilizing quality approved components with the aid of advanced techniques as per the international market standards. The provided system is used in lubrication purposes on several machines and devices like crushers, conveyors, apron feeder, etc for corrosion or making the surface non-crackable. This Multiline Lubrication System is availed as per the specific requirements of the clients.

Features:

  • Robust construction
  • Long operational life
  • Rust proof coating
  • Durability

Specifications:

MULTILINE LUBRICATOR (also called Radial Lubricator or Multipoint Lubricator) is a user friendly and cost-effective solution for centralized and automatic lubrication of a machine or an equipment having multiple points.Multiline lubricator combines multiple pumps into a single entity sharing a common reservoir and common drive.

Technical Specifications:

  • Upto 24 line per lubricator
  • Reservoir capacity - 5 / 9 / 15 / 50 litres
  • Pumps grease upto NLGI 2
  • Adjustable discharge per pumping element
    • -0.05cc - 0.25 cc / stroke (1.4cc-7cc/min)
  • Maximum pressure >300kg/cm2 (grease)
  • Optional features: Relief valve, Pressure Gauge, low level switch, pusher plate with tell tale rod
  • Accessories
  • Control panel for intermittent operation
  • Tubing & Fittings

Special Features:

  • Positive suction - Interlocking of pumping unit with cam ensures a positive suction stroke. It ensures accurate deliveries in every stroke. It increases life, increases reliability and consistent performance compared to spring loaded pumping elements.
  • Oil resistant epoxy paint
  • Stirrer - Ensures proper suction of grease in each pumping element avoiding air-pocket formation
  • Simple design which is easy to maintain
