Manual Grease Pump

Manual Grease Pump
Manual Grease Pump
Product Code : CST-13
Brand Name : CENLUB SYSTEMS
Product Description

Leveraging on our vast industry experience, we are manufacturing, exporting and supplying quality assortment of Manual Grease Pump. The provided pump is widely used for pumping greese or other highly viscous fluids in various automobile industry. The offered pump is manufactured under the supervision of experienced engineers by utilizing optimum quality basic components with the help of latest tools and technology. This Manual Grease Pump is properly tested by our quality controllers on several parameters and are availed at nominal prices.

Salient Features:

  • Compact design
  • Excellent functionality
  • Strong pump
  • Rust resistance
Specifications:
  • This Pump meant for feeding grease to bearings and other moving parts of machines such as Calendaring machines, Mixing machines, Rolling mills, Bending machines, Furnaces and other likely machines having 1-20 lubrication points. (Model MGP-600-2 for 1-6 points and Model MGP-1500-6 for 1-20 points).

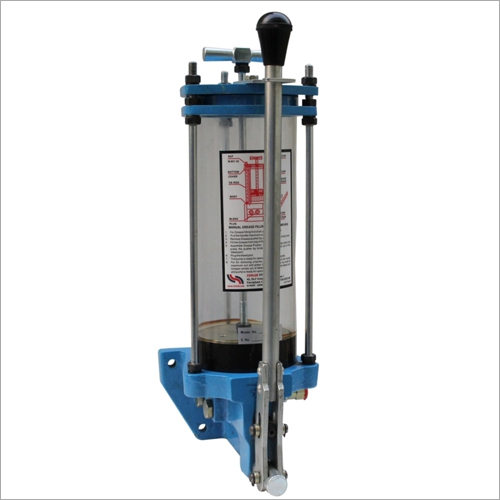

  • The pump consists of various parts as shown in the picture. When the handle is pulled, grease is sucked through the suction port. While pushing handle this grease come out under pressure through a check valve and is supplied to the grease pipelines.
  • The pump has reservoir, which can be either of acrylic or Mild Steel (as per the customer's choice). A tell tale rod indicates the level of grease and a follower plate assembly helps in providing positive suction of the grease.
  • Pump has got outlet ports of 1/4" BSP on both sides (Right hand side and Left hand side). Normally left hand side is plugged and check valve is fitted on right hand side. However, if required, this plug and check valve can be interchanged.

Technical Specifications

Specification

Model

Mgp-1500-4

Mgp-600-2

Reservoir capacity

1500 cc

600 cc

Discharge per stroke

4 cc

1.5 cc

Maximum pressure

100 kg/cm2

60 kg/cm2

Reservoir material

M.s./Acrylic

Acrylic

Outlet size

1/4" bsp

1/4" bsp

Distribution system

  • Grease from pump is further distributed either with the help of progressive blocks for positive distribution or with the help of manifold blocks. With manifold blocks grease distribution is as per pipe resistance.
