Dual Line System

Dual Line System
Dual Line System
Product Code : CST-15
Brand Name : CENLUB SYSTEMS
Product Description

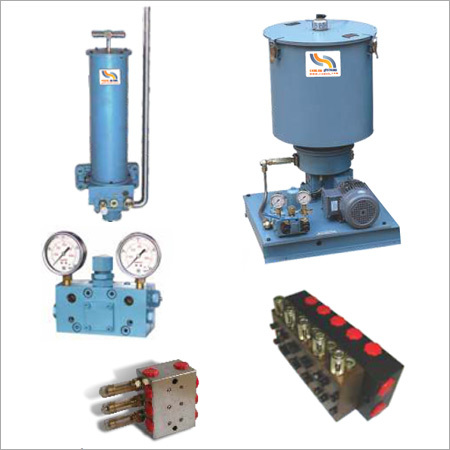

Dual Line System

We are remarkable organization, engaged in manufacturing, exporting and supplying Dual Line System.The provided system is manufactured by our experienced professional team by utilizing premium grade components with the aid of advanced technology. The offered system is properly recognized in the global market for their functionality and longer service life. Widely used for providing the conduction line in multiple direction for various devices and appliances in various industries. Furthermore, this Dual Line System can be availed at industry leading prices by our prestigious clients.

Key Features:

  • Low power consumption
  • Trouble free performance
  • Corrosion free coating
  • Easy to install

Specifications:

Dual lubrication system, a parallel type lubrication system, has two main lines running across the length and breadth of the equipment. Metering devices called "dose feeders" are installed close to the lubrication points. High pressure grease pump feeds the entire system and has options of manual, motorized and pneumatic drive to choose from.

PUMPING STATION:

  • With Safety Valve, Pressure Gauge and Lubricant filter
  • Pumps all type of oils and grease (upto NLGI 2)

Motorised Pump

  • No. of outlets - One
  • Max. Op. Pressure - 400 Bar
  • Reservoir Capacity - 50 / 100 Litres
  • Lubricant output - 9litres/hr and 14 Litres/hour
  • Drive - Electrical Motor with gear box
  • Power supply - 415V, 50Hz, 3 phase, 0.75KW

Pneumatic Pump: Mounted on 180 kg grease barrel

Manual Pump:

  • Max. Op. Pressure - 400 Bar
  • Reservoir Capacity - 2.5 / 4 Litres

CHANGE OVER VALVE

  • Hydraulically operated with indicator pin with proximity switch
  • Option of motorised valve and solenoid operated valve available

DOSE FEEDERS

  • Have adjustable output and indicator pin for monitoring
  • Options available in dose outputs and in construction type - modular and mono-block
  • Inlet connection - 3/8"BSP (Female)
  • Outlet connection - 1/4"BSP (Female)

CONTROL PANEL

For controlling the operations of centralised system having following features

  • Lubrication cycle count
  • Off-time setting
  • Reservoirs low level indication
  • Fault Annunciation by audio/visual indication
  • Motor Overload / short circuit Protection
